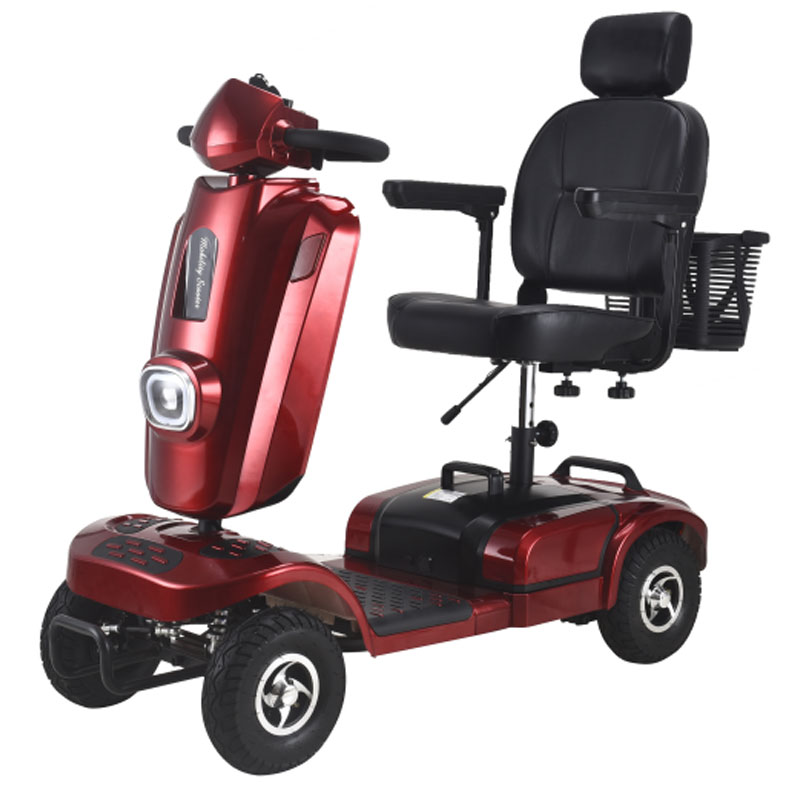

CE/FDA 10" 350W 4-Wheel Mobility Scooter W/ Magnetic Brake-EMS004D
Brand:
ACTIVE WHEEL
Spu:
EMS004D
- Overview
- Recommended Products
| Size of Vehicle (L.*W.*H. ) | 1350 * 500 * 1000 MM |
| MOTOR | 24V350W Brush, with differential |
| Batteries | 12V/20AH × 2 PCS SLA Battery, over than 400 cyclings |
| CONTROLLER | 24V 70A |
| Changer | DC24V 2A AC 100-250V UL/EMC/LVD/ROHS |
| Charging time | 8 Hours |
| Front wheel | 10" (PU Solid tyre)× 2 pc |
| Back wheel | 10" (PU Solid tyre)×2 pcs |
| Seat (W. *H.* D.) | 43*51*33 CM, fixing height adjustable |
| Max. forward speed | 10 KM/H |
| Brake | rear drum brake |
| Brake distance | 1.2M/47.24" |
| Max. backward speed | 3.5 KM/H |
| Ranges | 20 KM |
| Min. Ground Clearance | 95 mm |
| Electro-magnetic brake | (Anti-slide backwards on slope) |
| N.W./G.W. | 52 KG/ 60KG |
| Weight Capacity | 150kg/ 330LBS |
| Max.Slope Grade Ability | 12° |
| Packing size | 140 * 54 * 70 cm |
| Conveyance | 52 PCS/20GP, 126 PCS/40HQ |
